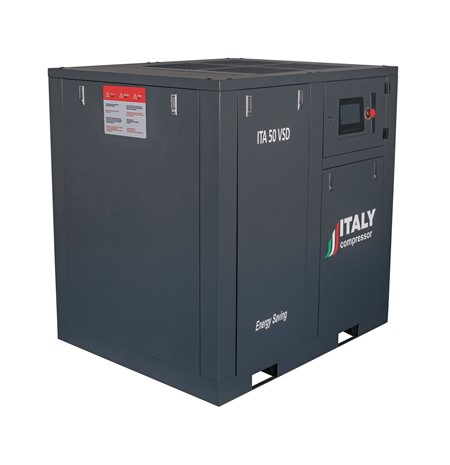

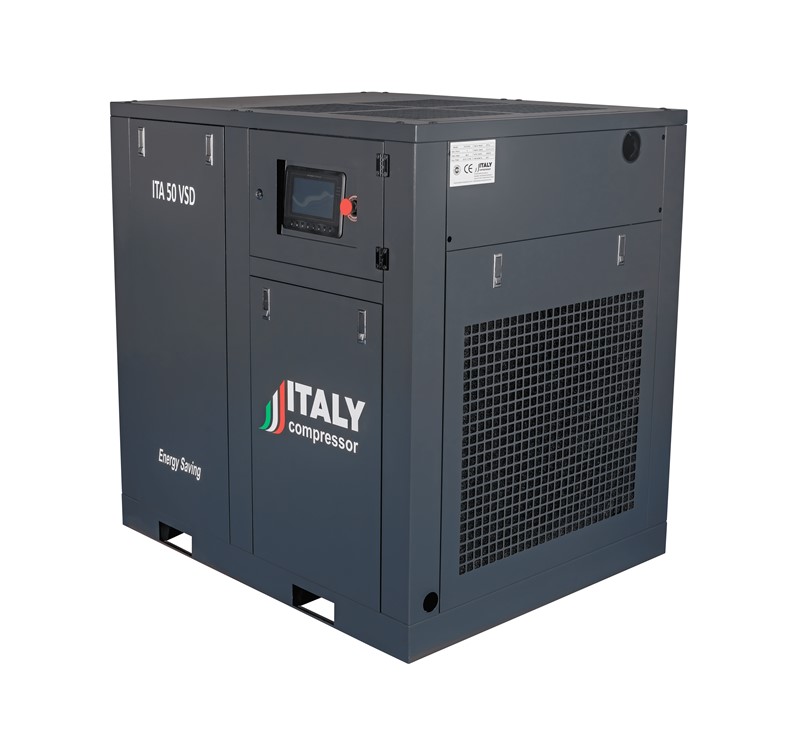

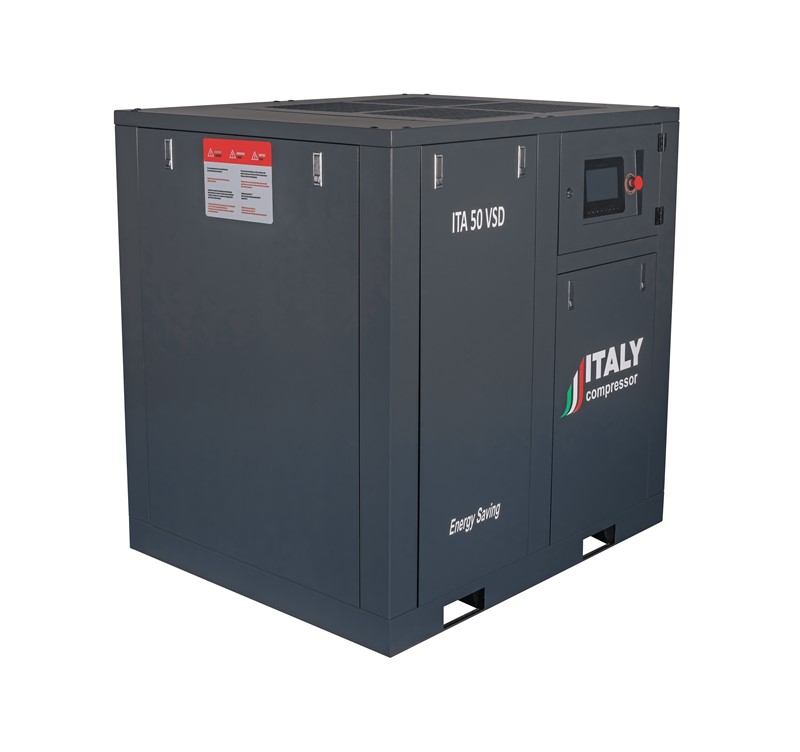

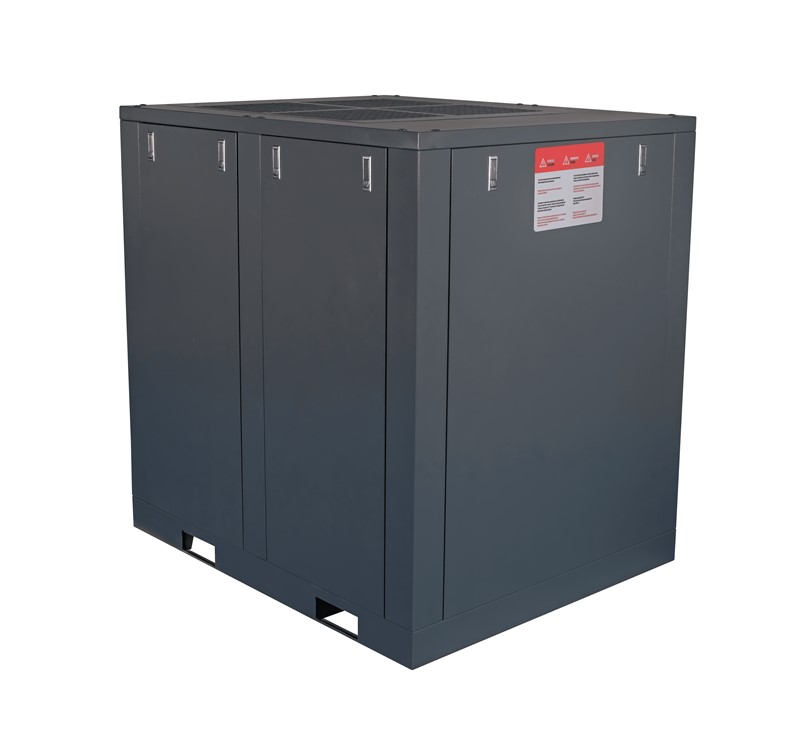

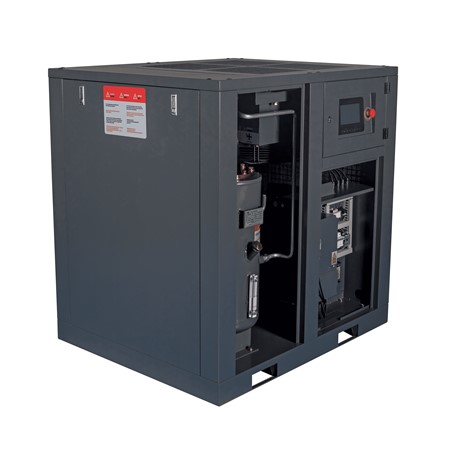

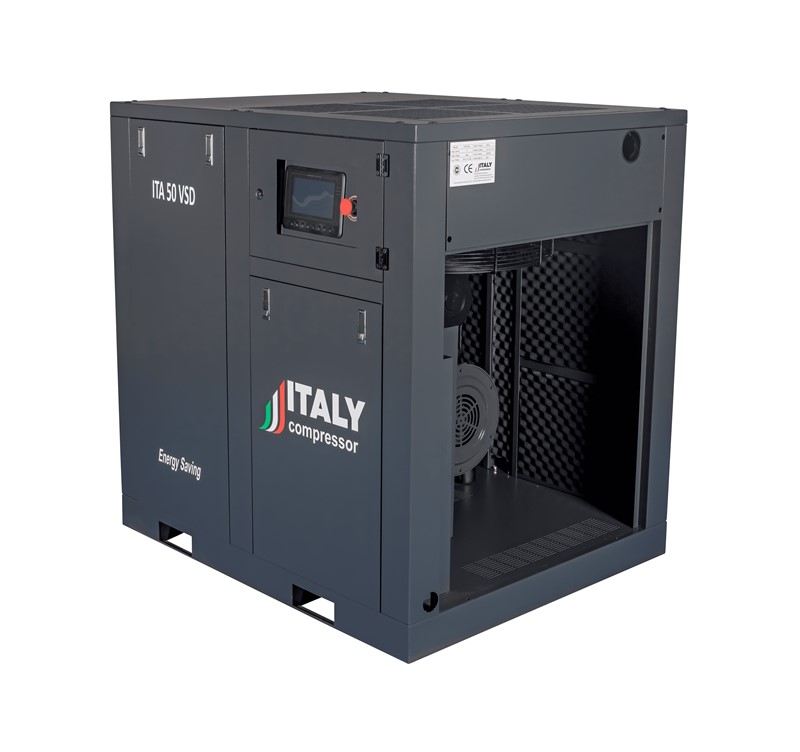

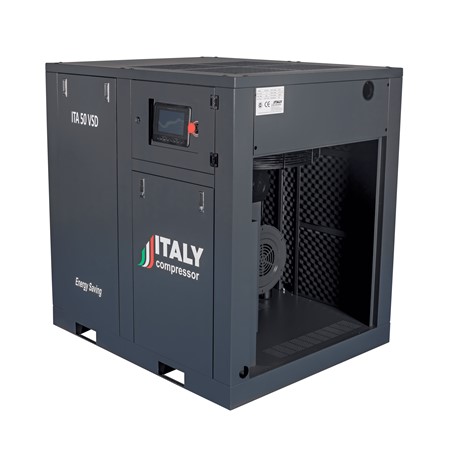

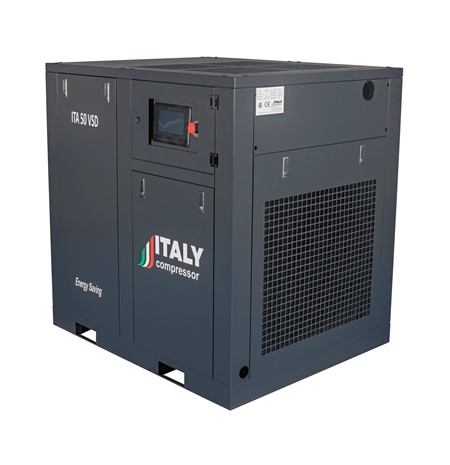

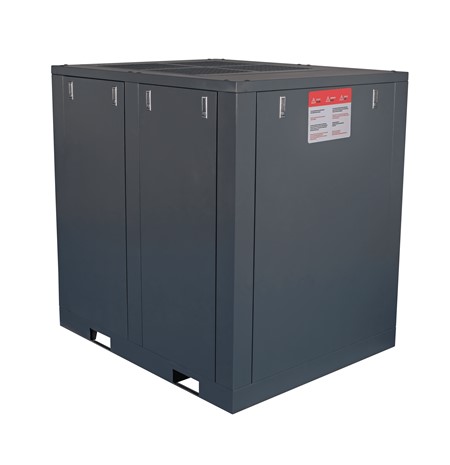

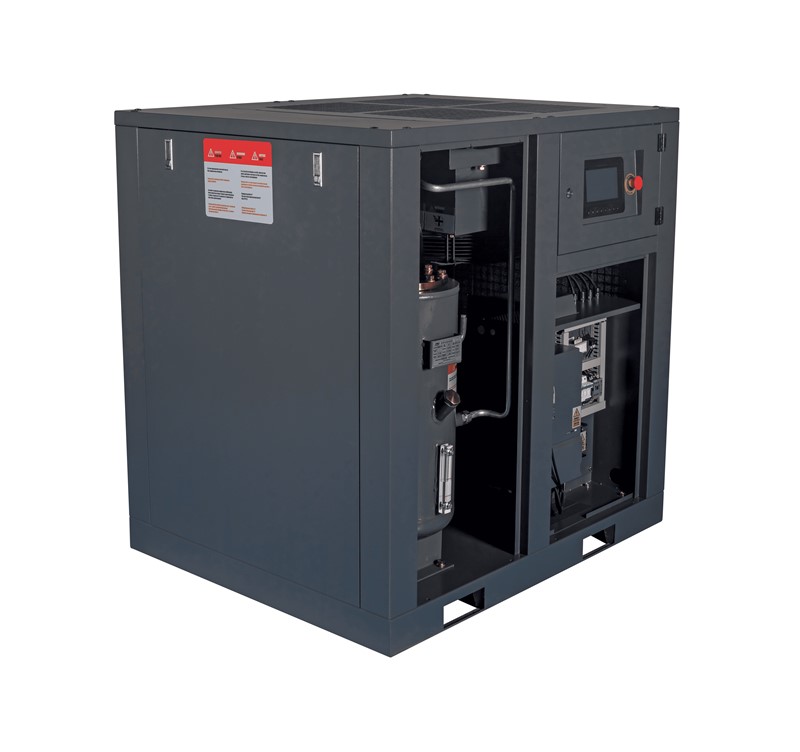

ITA VSD 50

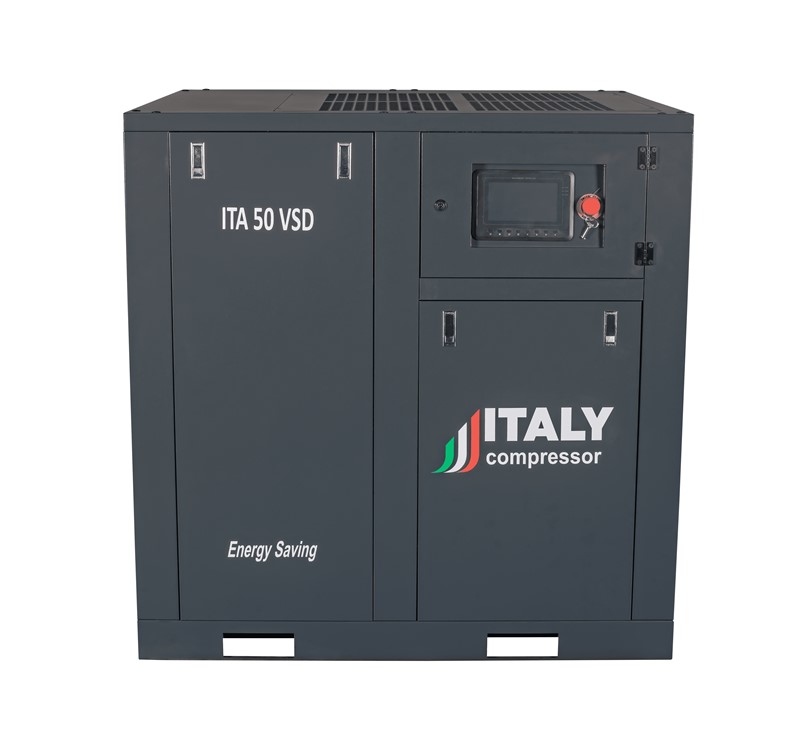

ITA 50 VSD
ITA 50 VSD ürünümüz hakkında detaylı bilgi almak için bizimle iletişime geçin.
| Model | Çalışma Basıncı | Serbest Hava Debisi | Motor Gücü | Hava Çıkış Hattı | Ses Seviyesi | Boyutlar | Ağırlık |
|---|---|---|---|---|---|---|---|
| Ita 10 VSD | 8bar 116psig | 1.13m³/dak 40.00 CFM | 10HP 7,5kW | G 1/2" inch | 63db(A) | 865 x 665 x 910 | 125Kg |
| Ita 10 VSD | 10bar 145psig | 1.06m³/dak 37.00 CFM | 10HP 7,5kW | G 1/2" inch | 63db(A) | 865 x 665 x 910 | 125Kg |
| Ita 15 VSD | 8bar 116psig | 1.78m³/dak 63.00 CFM | 15HP 11kW | G 3/4" inch | 64db(A) | 1050 x 750x 1040 | 225Kg |
| Ita 15 VSD | 10bar 145psig | 1.57m³/dak 55.00 CFM | 15HP 11kW | G 3/4" inch | 64db(A) | 1050 x 750x 1040 | 225Kg |
| Ita 20 VSD | 8bar 116psig | 2.46m³/dak 87.00 CFM | 20HP 15kW | G 3/4" inch | 65db(A) | 1050 x 750 x 1040 | 240Kg |
| Ita 20 VSD | 10bar 145psig | 2.11m³/dak 75.00 CFM | 20HP 15kW | G 3/4" inch | 65db(A) | 1050 x 750x 1040 | 240Kg |
| Ita 30 VSD | 8bar 116psig | 3.75m³/dak 132.00 CFM | 30HP 22kW | G 1" inch | 67db(A) | 1160 x 800x 1150 | 300Kg |
| Ita 30 VSD | 10bar 145psig | 3.26m³/dak 115.00 CFM | 30HP 22kW | G 1" inch | 67db(A) | 1160 x 800x 1150 | 300Kg |
| Ita 40 VSD | 8bar 116psig | 4.72m³/dak 167.00 CFM | 40HP 30kW | G 1 1/2" inch | 67db(A) | 1250 x 1030x 1270 | 430Kg |
| Ita 40 VSD | 10bar 145psig | 4.14m³/dak 146.00 CFM | 40HP 30kW | G 1 1/2" inch | 67db(A) | 1250 x 1030x 1270 | 430Kg |
| Ita 50 VSD | 8bar 116psig | 6.33m³/dak 224.00 CFM | 50HP 37kW | G 1 1/2" inch | 67db(A) | 1250 x 1030x 1270 | 460Kg |
| Ita 50 VSD | 10bar 145psig | 5.65m³/dak 200.00 CFM | 50HP 37kW | G 1 1/2" inch | 67db(A) | 1250 x 1030x 1270 | 460Kg |
| Ita 60 VSD | 8bar 116psig | 7.47m³/dak 264.00 CFM | 60HP 45kW | G 2" inch | 67db(A) | 1580 x 1160x 1600 | 840Kg |
| Ita 60 VSD | 10bar 145psig | 6.80m³/dak 240.00 CFM | 60HP 45kW | G 2" inch | 67db(A) | 1580 x 1160x 1600 | 840Kg |
| Ita 75 VSD | 8bar 116psig | 10.00m³/dak 353.00 CFM | 75HP 55kW | G 2" inch | 67db(A) | 1580 x 1160x 1600 | 860Kg |
| Ita 75 VSD | 10bar 145psig | 8.54m³/dak 302.00 CFM | 75HP 55kW | G 2" inch | 67db(A) | 1580 x 1160x 1600 | 860Kg |
| Ita 100 VSD | 8bar 116psig | 12.50m³/dak 441.00 CFM | 100HP 75kW | G 2" inch | 70db(A) | 1580 x 1160x 1600 | 930Kg |
| Ita 100 VSD | 10bar 145psig | 10.00m³/dak 353.00 CFM | 100HP 75kW | G 2" inch | 70db(A) | 1580 x 1160x 1600 | 930Kg |
